Automatic Snacks Food Fryer Frying Machine
I Introduction:
Frying machine includes automatic continuous deep frying machine, automatic continuous curtain frying machine, automatic batch frying machine.

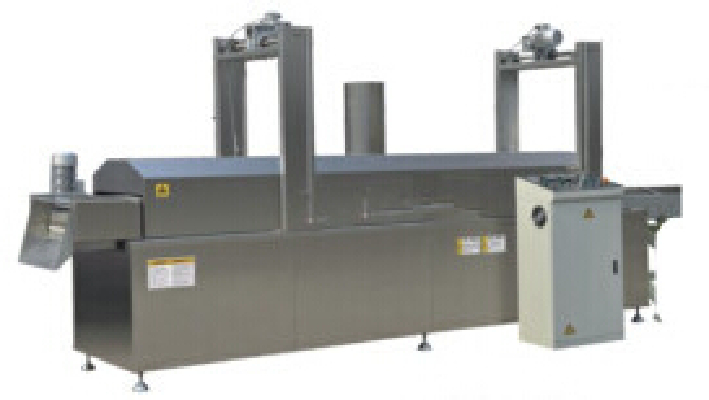

Continuous Frying Machine:
This frying machine adopts outer heat cycling way. The heater is separated from frying machine, and circulating pump makes the frying oil flows circularly and end at the heater.
The heater is with large heating area, quick temperature rise and automatic oil temperarure control. Outer deoil device cleans the waste residue. Heat preservation device fro the oil groove and outside loop.
It can adopt coal, diesel, gas, boimass fuel as energy source.
Automatic Batch Frying Machine:
With function of frying, deoiling and conveying in compact structure, small floor cover.
Heat source by diesel / gas, biomass burner rises temperature fast.
Two control ways, manual and automatic control way. Makes the operation easily.
II Wide Usage
The frying machine is suitable for frying a variety of food, such as fried snacks, kurkure, tortilla chips, bugle snacks, snacks pellet, banana chips, potato chips, soya protein, peanut, beans, etc.
III Technical Parameter:
Model | Total Power | Heating Power | Heating Temperature | Capacity | Dimension |
4m continuous fryer | 7.75kw | 250Kcal | Max. 260 ℃ | 200-300kg/h | 4000 x 1500 x 3500mm |
6m continuous fryer | 9.75kw | 300Kcal | Max. 260 ℃ | 300-500kg/h | 6000 x 1800 x 3600mm |
8m continuous fryer | 13kw | 400Kcal | Max. 260 ℃ | 500-800kg/h | 8000 x 1800 x 3600mm |
3m curtain fryer | 45kw | 39kw | Max. 260 ℃ | 100-200kg/h | 3100 x 1300 x 1500mm |
4.5m curtain fryer | 17kw | 300Kcal | Max. 260 ℃ | 200-400kg/h | 4600 x 3200 x 2300mm |
Automatic Batch fryer | 60.8KW | 55KW | Max. 260 ℃ | 100-200kg/h | 4800 x 2300 x 2900mm |
