Automatic puff snacks food snacks pellet dryer drying machine

Automatic puff snacks food snacks pellet dryer drying machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 200 Sets per Year
  • Port: China port
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2012-05-17
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  32.15
  • Place of Origin:  China
  • Brand Name:  DG
  • Model Number:  KX-III, KX-V, KX-VII
  • Weight: 3500.000 kg

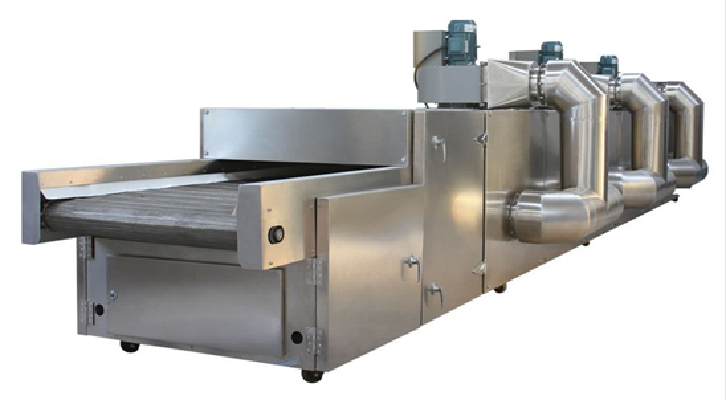

Automatic Puff Snacks Snacks Pellet Food Dryer Drying Machine



I Introduction



This drying machine adoptes back and forth movement of the stainless steel mesh wire. It not only improves intake capacity of material, reduces floor area, but also equally arranges material, improve the material drying rate. This oven using electric heating source whose price is low, which is convenient, quick and clean, less pollution for surrounding environment.



More important, we add thermal cycling wind system, which increases the drying heating rate. Besides, we install stainless steel drawer in the bottom of the drying machine and food out place which will collect the waste material to make the drying machine clean. We also install door on both side of the drying machine. And the operator will easy to see the food in the drying machine easily.



II Classification:



1. Puff Snacks Dryer

Single layer drying machine, three layer drying machine, five layer drying machine, seven layer drying machine, ten layer drying machine.



2. Snacks Pellet Dryer

Single layer manual drying machine, three layer recycle drying machine, five layer recycle drying machine, five layer continuous drying machine.



3. Sugar Coated Snacks Dryer

Three layer extended drying machine, five layer extended drying machine



III Widely Usage



It is widely used to dry drying machine is suitable for drying puff snacks, snacks pellet, banana chips, dates, soya protein, breakfast cereal, nutritional rice, pet food, bread crumbs, etc.



IV Technical Parameter:

Model

Total power

Heating Temperature

Capacity

Dimension

Three layer drying machine

25kw

100-150

100-150kg/h

4800 x 1200 x 1800mm

Three layer fuel drying machine

4.5kw

100-150

150-200kg/h

6500 x 1200 x 2000mm

Five layer fuel drying machine

6kw

100-150

200-350kg/h

7200 x 1500 x 2600mm

Low temperature drying machine

10.49kw

60-80

200-250kg/h

9500 x 2500 x 2900mm

Large fuel drying machine

90kw

100-150

2000-3000kg/h

18000 x 2500 x 3500mm









  • Size:  32.15
  • Place of Origin:  China
  • Brand Name:  DG
  • Model Number:  KX-III, KX-V, KX-VII
  • Weight: 3500.000 kg

Technical Parameter:

Model

Total power

Heating Temperature

Capacity

Dimension

Three layer drying machine

25kw

100-150

100-150kg/h

4800 x 1200 x 1800mm

Three layer fuel drying machine

4.5kw

100-150

150-200kg/h

6500 x 1200 x 2000mm

Five layer fuel drying machine

6kw

100-150

200-350kg/h

7200 x 1500 x 2600mm

Low temperature drying machine

10.49kw

60-80

200-250kg/h

9500 x 2500 x 2900mm

Large fuel drying machine

90kw

100-150

2000-3000kg/h

18000 x 2500 x 3500mm
