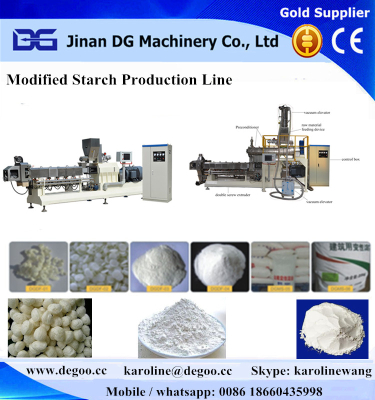

Automatic Modified Starch Extruder Production Line
Brief introduction :
Twin screw extruder for producing modified starch is kind of new technology for modified starch. The technology combined with conveying, blending, temperature up and pressure up, shearing and melting etc process on twin screw extruder to accomplish thermo-chemical denaturation process of starch. It is a thermo-chemical process which is high temperature,short time,low moisture,high energy.
Cause it is accomplished in single equipment which is easy to operate and small area cover, its capacity is higher than others.
Twin screw extruder can continuously produce various type modified starch no - polluted such as: oxidation, esterification, crosslinking, etherification and other types of starch.
Higher blending efficient, well process control, uniform starch is the main advantage of twin screw extruder. So twin screw extruder is kind of economy process to produce modified starch quickly and continuously.
Processing flow:
Mixer----conveyor----Twin screw extruder---conveyor----drying----grinding machine----sifting machine---blender
Application:
Modified starch is widely used in the textile, paper, food, petroleum, medical, construction, agricultural feed, daily chemical industry.
Technical parameters
Model | Installed power | Power consumption | Throughput | Dimension |
DG75-III processing line | 107KW | 80KW | 250-400kg/h | 16X2.5X3.2M |
DG90-II processing line | 403KW | 302KW | 400-800kg/h | 34X4.4X3.4M |
